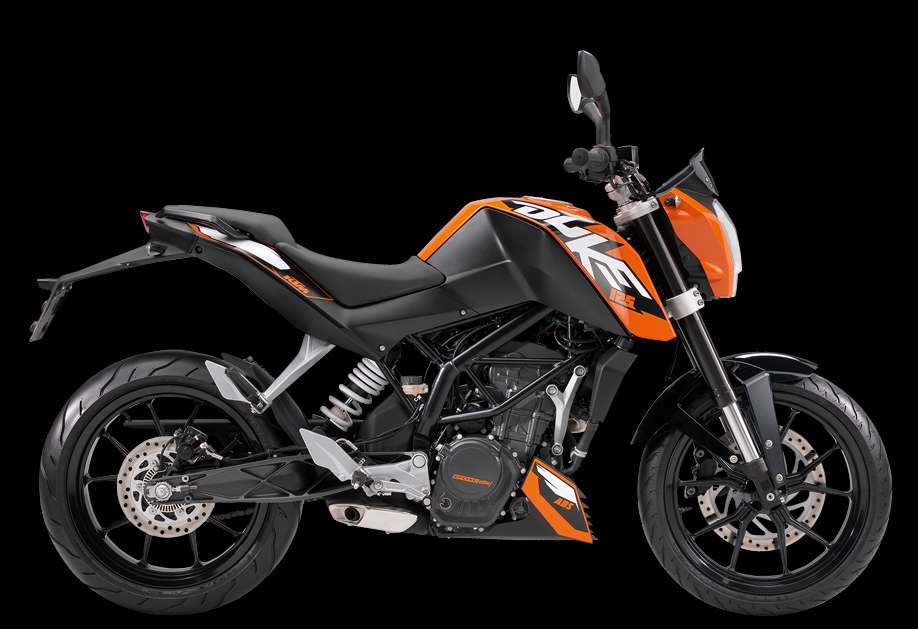

125 DUKE

Por CarvalhoKTM, NAKED

ENGINE

  • DESIGN

    1-cylinder, 4-stroke engine

  • DISPLACEMENT

    124.7 cm³

  • BORE

    58 mm

  • STROKE

    47.2 mm

  • POWER IN KW

    11 kW

  • STARTER

    Electric starter

  • LUBRICATION

    Wet sump

  • TRANSMISSION

    6-speed

  • PRIMARY DRIVE

    22:72

  • SECONDARY GEAR RATIO

    14:45

  • COOLING

    Liquid cooled

  • CLUTCH

    Wet multi-disc clutch, mechanically actuated

  • EMS

    Bosch EMS

CHASSIS

  • FRAME DESIGN

    Steel trellis frame, powder coated

  • FRONT SUSPENSION

    WP upside-down Ø 43 mm

  • REAR SUSPENSION

    WP monoshock

  • SUSPENSION TRAVEL (FRONT)

    150 mm

  • SUSPENSION TRAVEL (REAR)

    150 mm

  • FRONT BRAKE

    Four-piston radial fixed calliper, brake disc

  • REAR BRAKE

    Single-piston floating calliper, brake disc

  • FRONT BRAKE DISC DIAMETER

    300 mm

  • REAR BRAKE DISC DIAMETER

    230 mm

  • ABS

    Bosch 9MB two-channel ABS

  • CHAIN

    X-Ring 5/8 x 1/4″

  • STEERING HEAD ANGLE

    65 °

  • WHEELBASE

    1367 ± 15 mm

  • GROUND CLEARANCE

    170 mm

  • SEAT HEIGHT

    800 mm

  • TANK CAPACITY (APPROX.)

    11 l

  • DRY WEIGHT

    127 kg
