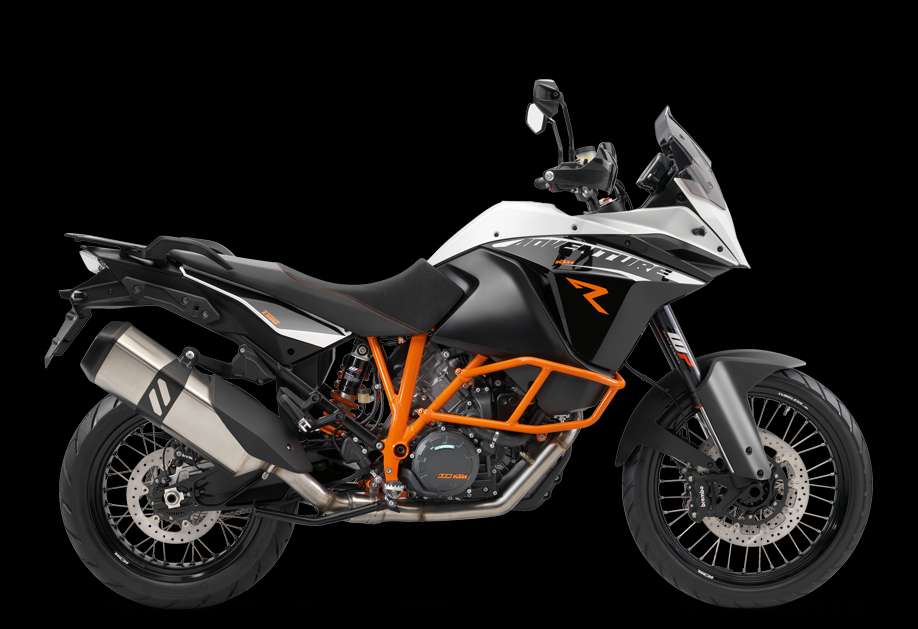

1190 ADVENTURE R

Por CarvalhoKTM, TRAVEL

ENGINE

  • DESIGN

    2-cylinder, 4-stroke, V 75°

  • DISPLACEMENT

    1195 cm³

  • BORE

    105 mm

  • STROKE

    69 mm

  • POWER IN KW

    110 kW

  • STARTER

    Electric starter

  • LUBRICATION

    Forced oil lubrication with 3 oil pumps

  • TRANSMISSION

    6-speed

  • PRIMARY DRIVE

    40:76

  • SECONDARY GEAR RATIO

    17:42

  • COOLING

    Liquid cooled

  • CLUTCH

    PASC (TM) slipper clutch, hydraulically actuated

  • EMS

    Keihin EMS with RBW, twin ignition

CHASSIS

  • FRAME DESIGN

    Chromium-Molybdenum steel trellis frame, powder coated

  • FRONT SUSPENSION

    WP USD Ø 48 mm

  • REAR SUSPENSION

    WP shock absorber

  • SUSPENSION TRAVEL (FRONT)

    220 mm

  • SUSPENSION TRAVEL (REAR)

    220 mm

  • FRONT BRAKE

    2 x Brembo four-piston radial fixed calliper, brake discs, floating

  • REAR BRAKE

    Brembo twin-piston fixed calliper, brake disc

  • FRONT BRAKE DISC DIAMETER

    320 mm

  • REAR BRAKE DISC DIAMETER

    267 mm

  • ABS

    Bosch 9ME combined ABS (incl. cornering ABS and offroad mode, disengageable)

  • CHAIN

    X-Ring 5/8 x 5/16″

  • STEERING HEAD ANGLE

    64 °

  • WHEELBASE

    1580 ± 15 mm

  • GROUND CLEARANCE

    250 mm

  • SEAT HEIGHT

    890 mm

  • TANK CAPACITY (APPROX.)

    23 l

  • DRY WEIGHT

    210 kg
